Two or three simultaneously operational LTE modems allow you to use different cellular providers for bandwidth bonding, helping achieve high speeds even in rural areas.

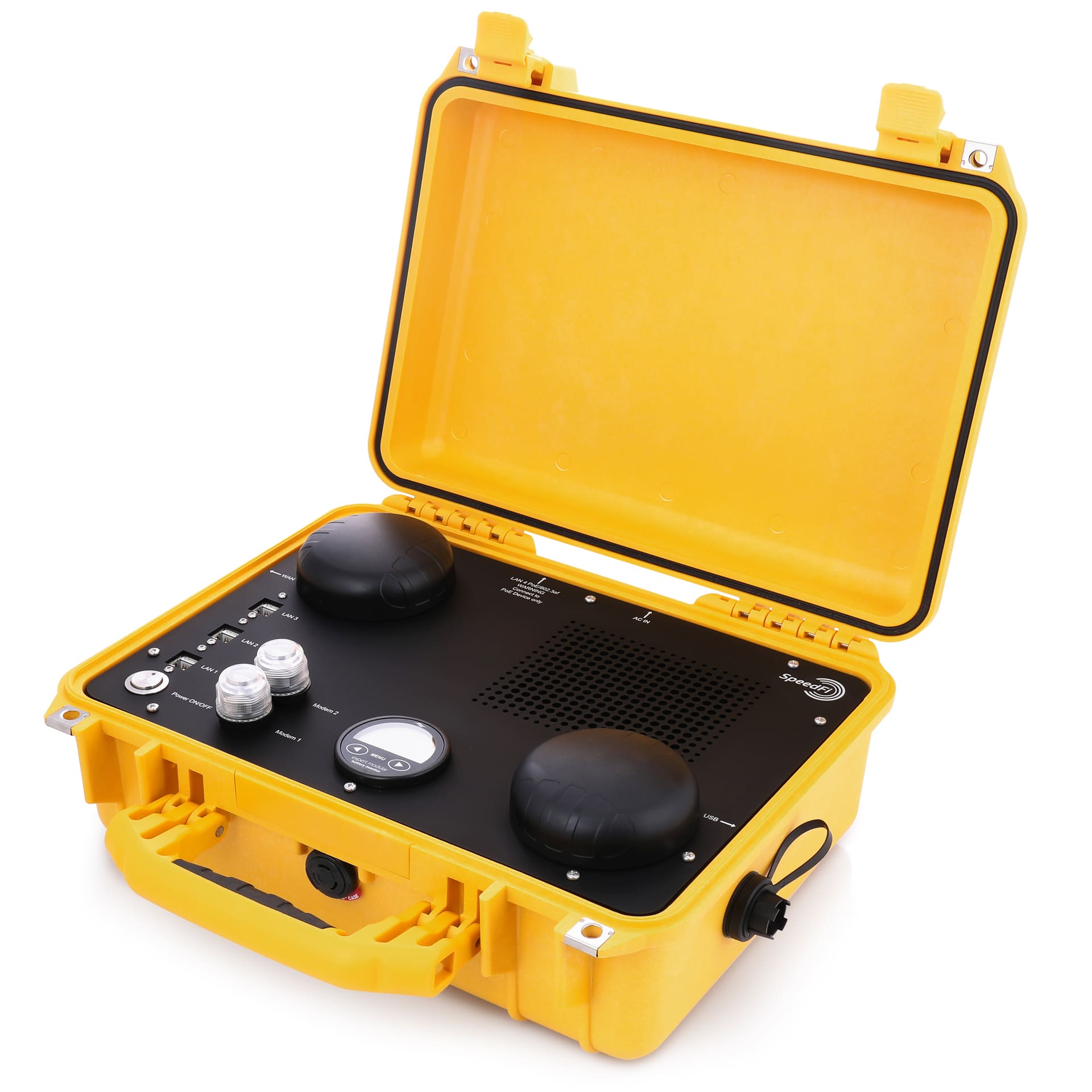

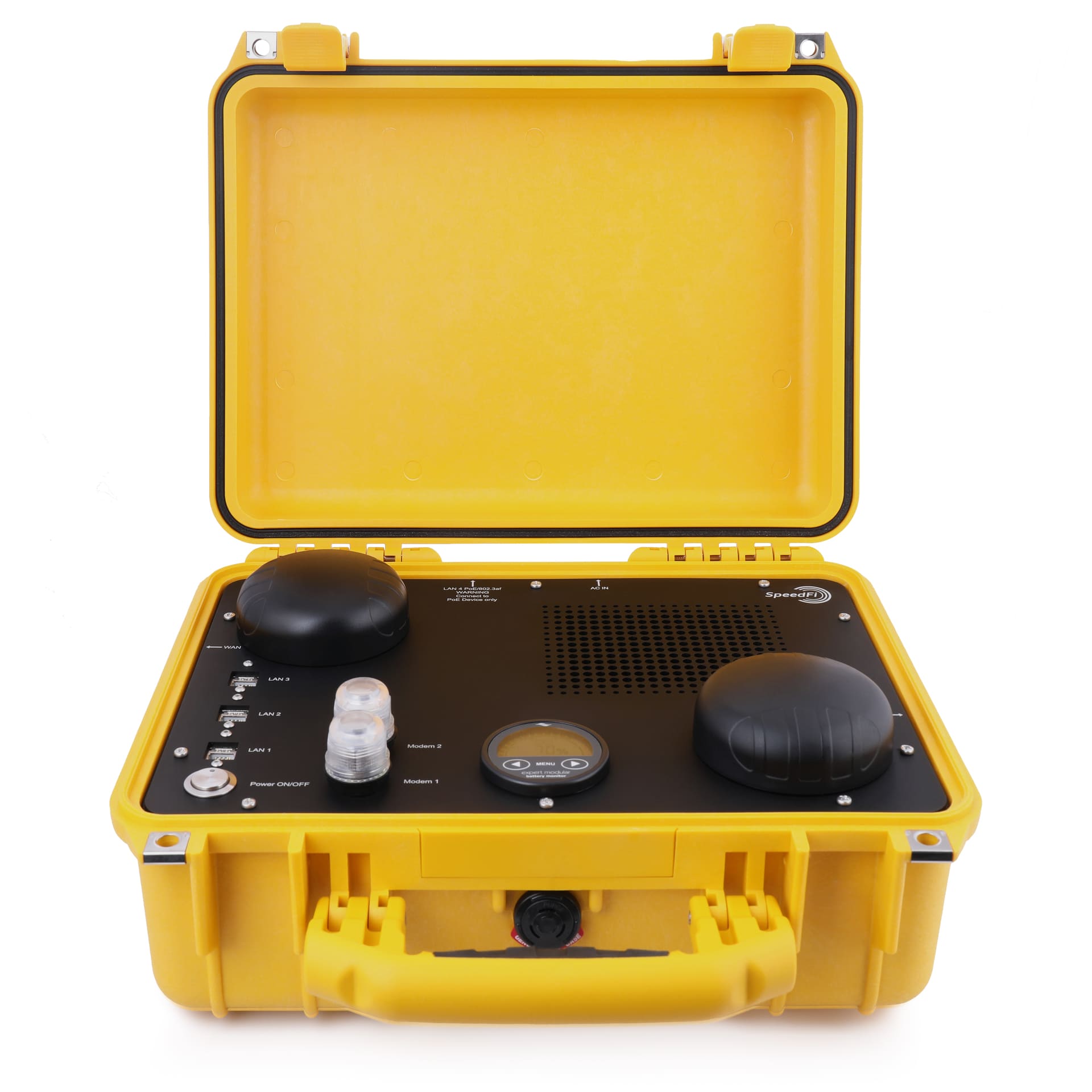

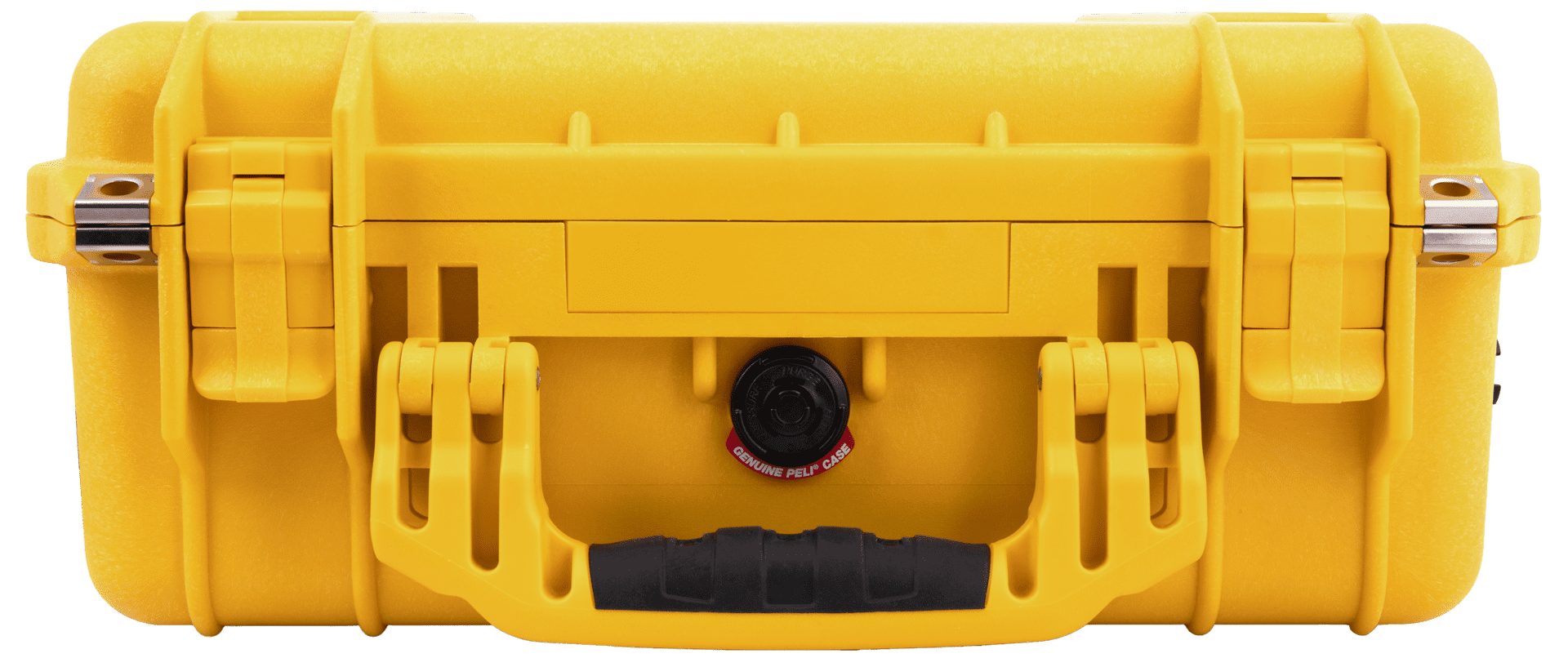

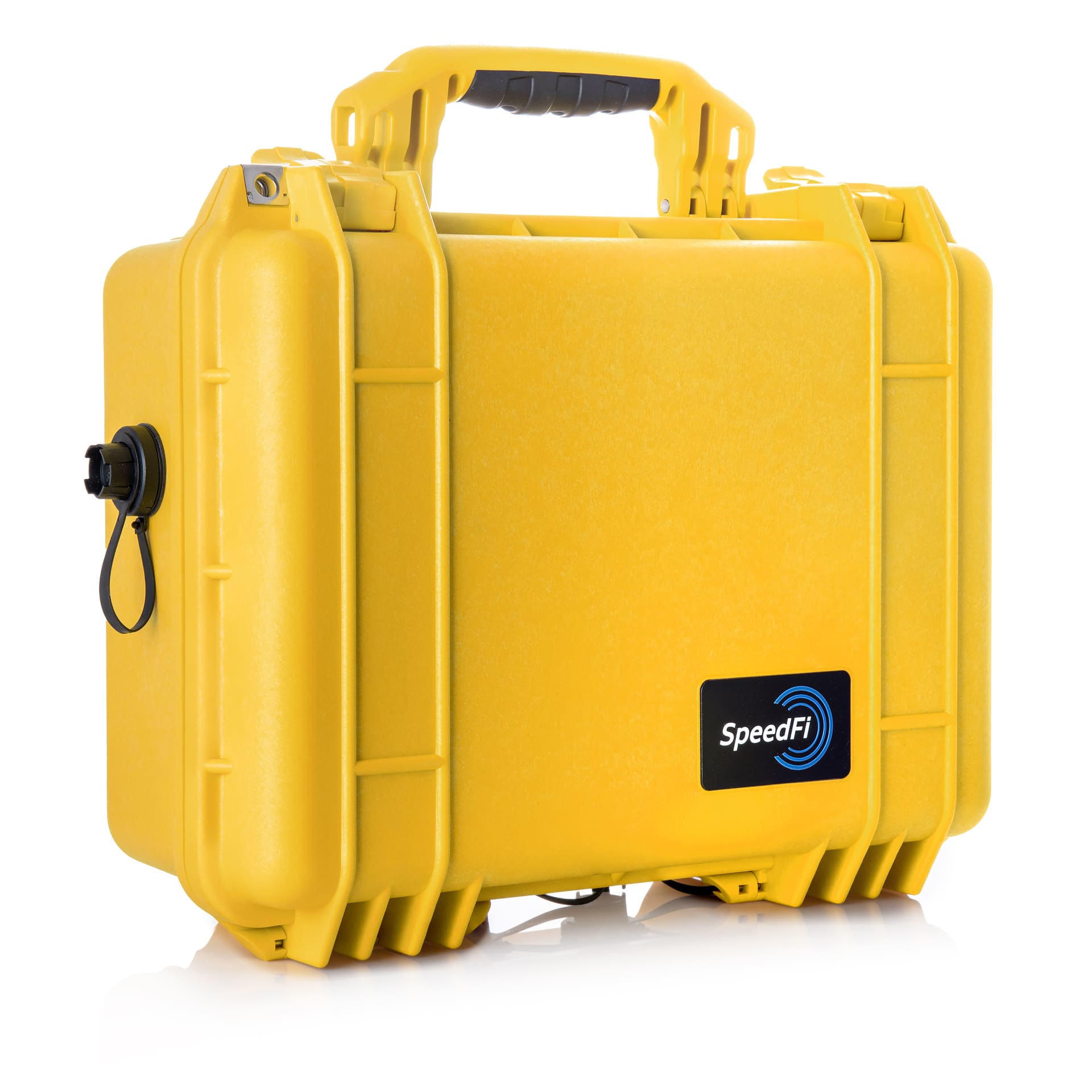

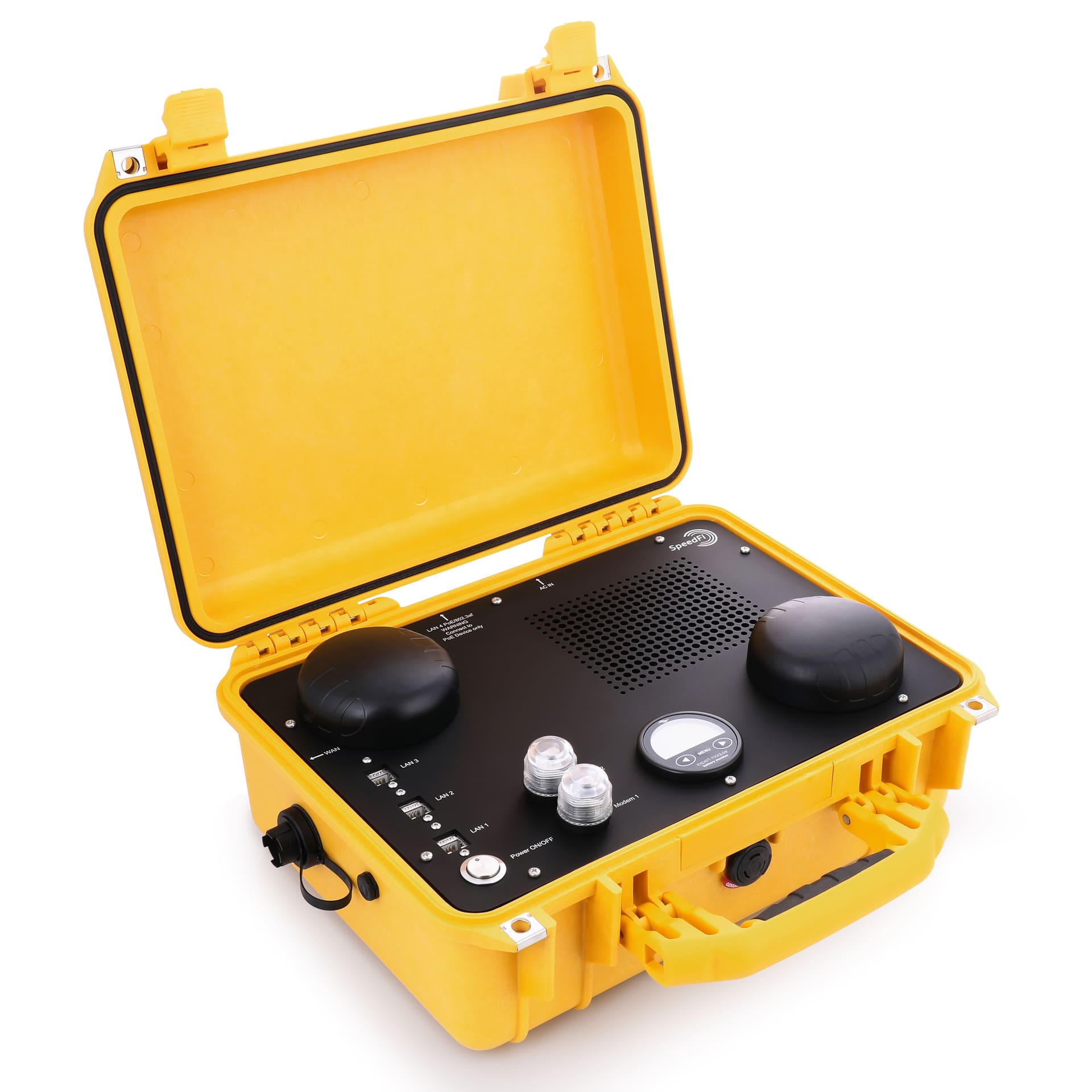

Meet PCU
All-in-One Ruggedized Network
The Portable Connectivity Unit (PCU) is a portable, battery-powered multi-WAN gateway designed to withstand the most demanding weather conditions, addressing connectivity and power challenges in remote and temporary projects. It features dual or triple embedded cellular modems, as well as integrated cellular, WiFi, Bluetooth, and GPS antennas.
Depending on the version, the PCU can be equipped with four unmanaged PoE ports or one managed PoE port and USB input. You can connect an additional access points, VoIP phones, security cameras or other equipment. LAN ports can be configured as WAN to provide additional sources of Internet connection.
PCU allows you to aggregate multiple wireless and wired internet connections to create a faster, reliable, 100% uptime connection.
Where Every Detail Counts
Aggregation of multiple wireless and wired internet connections to create a faster, reliable, 100% uptime connection. You are always online and connected.
Optional 12 V output to power additional equipment.
The device weighs 8 kilograms. The handle makes it easy to carry.
The shell is made of a polypropylene copolymer which has high mechanical strength, stiffness, hardness and has chemical resistance properties.
Wave-2 802.11ac Dual-Band Wi-Fi, can work as an access point or Wi-Fi WAN to provide additional sources of Internet connection.
Using the mobile app for iOS and Android, you can read and configure the battery parameters.
Press the button, the device will be ready for use after three minutes. You will be informed about it via SMS or e-mail.
Environmentally sealed connectors designed to provide secure, robust and watertight connections in heavy duty and harsh environment applications.
Operates in extreme temps from -20°C to 45°C. The built-in temperature sensor allows you to quickly check the battery temperature.
Highly advanced battery monitor. Displays voltage, current, consumed amp hours, remaining battery capacity, time remaining, power and temperature.
154 Wh Lithium Iron Phosphate (LiFePO4) battery, allowing remote operation for up to 24 hours.
Power your access point, IP phone, cameras, or any PoE equipment.
Designed to work as a closed lid solution, it is entirely dust and waterproof when shut.
Precision in Every Aspect
Integrated Cellular
2x Embedded LTE-A Modems (CAT-6)
SIM Card Slot
2x Full-size (1FF)
Ethernet (WAN and/or LAN)
7x GE Ports (8P8C)
Wi-Fi Interface
Simultaneous Dual-Band
(2.4GHz / 5GHz)
Wi-Fi 5 2×2 MU-MIMO
Wi-Fi WAN and/or AP
Antennas
4x Cellular Antennas
(Embedded)
1x GPS Antenna
(Embedded)
1x GPS Antenna
(Embedded)
2x Wi-Fi Antennas
(Embedded)
Battery
154 Wh Lithium Iron Phosphate (LiFePO4) 12V battery
Power Input
DC: 13.8 – 14.6V
Power Output
4x 802.3af/802.3at PoE
Power Consumption
Idle: <6 W, Max: <24 W (no PoE)
Dimensions
40.9 x 33.1 x 17.5 cm
Weight
8 kg
Operating Temperature
Charge 0°C ~ +45°C
Discharge -20°C ~ +45°C
Humidity
15% – 95% (non-condensing)
Warranty
1-Year Limited Warranty
Package Content
PCU
Waterproof IP68 Battery Charger
Certifications
CE IP65 IP67 pending
Colours
Units – cm
12 V output
12 V output to power additional equipment
Remote control*
Remotely turning on and off the PCU. This function is useful for saving battery in special situations.
Remote reading of battery voltage and temperature inside the device.
Cold weather package*
Recommended when charging will occur in winter conditions (consistently below 0°C)
Reinforced battery compartment
Increased shock and vibration resistance
Additional modem
LTE-A Modem (CAT-6)
* Coming soon
Ethernet Cables
Pre-Wired S/FTP Cat 6a Patch Cord IP68 RJ45 to Shielded RJ45 Cable*
Length 2, 3, 5m
Pre-Wired S/FTP Cat 6a Patch Cord IP68 RJ45 to IP68 RJ45 Cable*
Length 2, 3, 5m
Power Cables
Special Power Cord* Length 2, 3, 5m
Chargers
7A LiFePO4 charger waterproof IP68
OFF-GRID
2A DC to DC battery charger & maintainer waterproof IP54
2A DC to DC battery charger & maintainer waterproof IP54
STD, AGM, GEL and LiFePO4 to LiFePO4
OFF-GRID
5A solar charge controller & battery monitor waterproof IP54
5A solar charge controller & battery monitor waterproof IP54
Works with 12V polycrystalline or mono- crystalline solar panels, with rated output from 10W to 60W
* Other lengths on request
Ports Customization
The PCU can be equipped with various types of waterproof ports tailored to specific applications. All circular, multiway connectors are available in the IP65-68 rating range, ensuring protection in both mated and unmated conditions for outdoor industrial use. These
connectors feature robust, durable, high-impact thermoplastic or metal construction based on MIL-DTL- 26482 J standards, and come with options for circular 1/3 turn bayonet coupling, quick-locking automatic, or rapid coupling systems. This solution is perfectly suited for industrial environments requiring quick coupling.
The transversally sealed connectors are fully compliant with the standard and are enhanced with a compound at the rear of the port. This improvement ensures that the connector remains sealed even when unmated from its plug or protective cap.
There is also the option to add an additional port with a 12 V output to power additional devices, such as the Starlink Mini. Along with the additional port, a cable with a dedicated port for the end device or with an open end allowing for self- installation of the appropriate connector will also be provided.
PCU: Instant and reliable connectivity on the Go
Find out how PCU can enhance your solution suite
